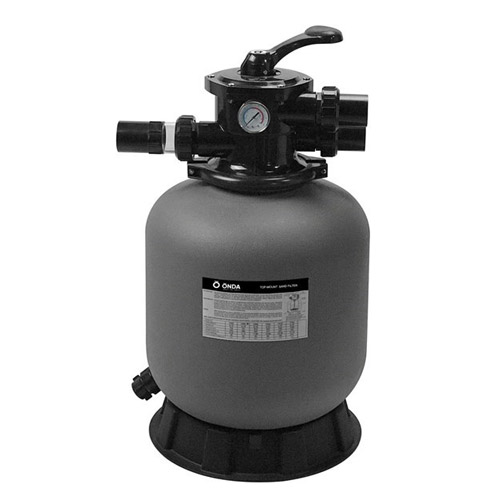

Onda filter top-montage 6,12 m³/h
This Onda filter can be used for pools up to 24,48 m³.
Filter diameter: 40 cm.
Connection: 1"1/2.
Flow rate: 6,12 m³/h.
Sand: 35 kg.
- High-density polyethylene, together with valve mounted on base plate.
- Compact and light.
- 4-way valve for top mounting with practical closure and pressure gauge (bar).
- Clamp allowing 360° rotation of the valve to facilitate installation.
- Footplate filter.
- Filter with drain plug.
- Maximum working pressure: 2,5 Bar.
- Test pressure: 3,75 Bar.
- Maximum temperature: 40°C.
- Maximum filtration rate: 50 m³/h/m².
- Grain size: 0,5 mm - 0,8 mm.
Filter media (filling) not included.
