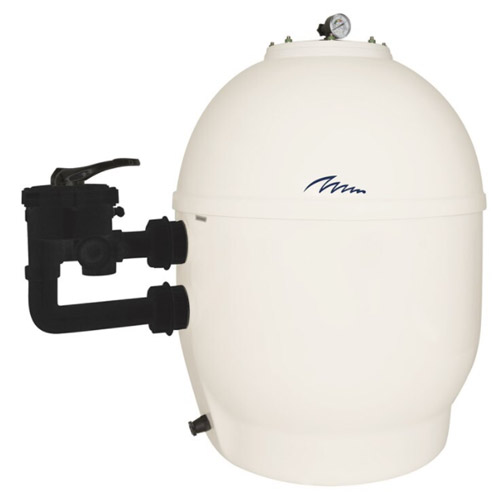

Filter PPG lateral assembly flow 16 m³/h
This PPG sand filter can be used for pools up to 64 m³.
Diameter: 64 cm.
Flow rate: 16 m³/h.
Connection: 1"1/2.
Warranty on the tank: 10 years.
Sand and silex: sand 180 kg and silex 50 kg or glass media: grade 1: 150 kg and grade 2: 42 kg.

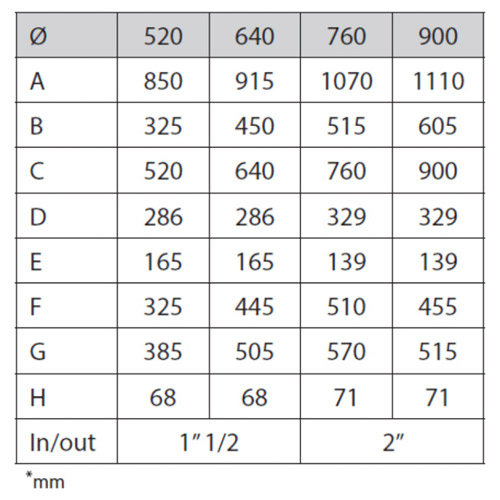

Dimensions (see photo).
A= 915 mm.
B= 450 mm.
C= 640 mm.
D= 286 mm.
E= 165 mm.
F= 445 mm.
G= 505 mm.
H= 68 mm.
- High technology: forming process with polyester resin reinforced with glass fibre.
- High finishing quality.
- Wide 20 cm transparent top cover resistant to all treatments, chlorine, salt,...
- Drainage plug diameter 1/4".
- Very strong connection between both parts.
- 6-way valve ban Praher (filtration, backwash, recycle, drain and close) and internal bleed valve to release air from the collectors.
- Filter easy to assemble and maintain.
- Maximum pressure 2,5 Bar.
Filter media (filling) not included.
